indoff.jpg (10361 bytes) This basically applies to Alliance wood Backed Porcelain over steel boards.

and recommendation of
Splines for Alignment

Indoff    - offices nationwide
7 Twin Oaks Drive
Cromwell, CT 06416
860-632-2028 Fax

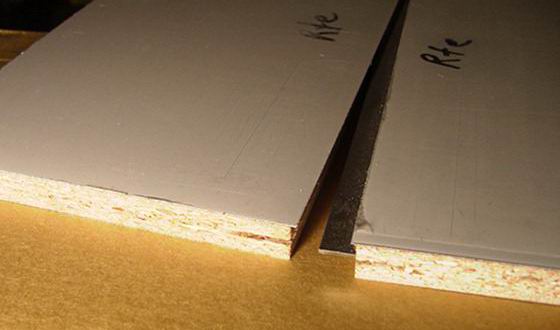

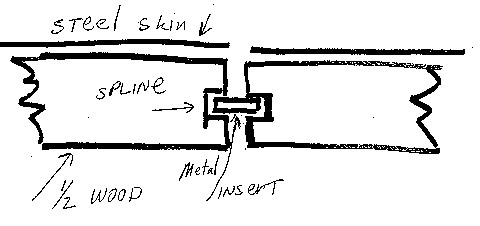

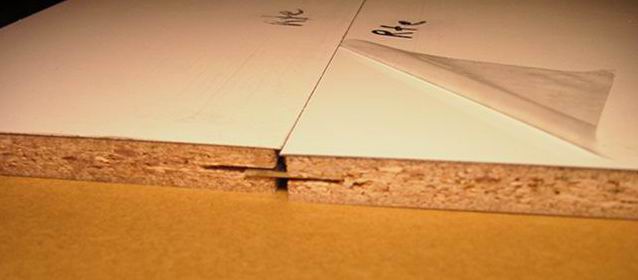

If you plan to mount a bunch of 1/2" Wood backed whiteboards next to each other so you have a large continuous surface we recommend getting the abutting seams splined.   We will route a grove in the two abutting sections and then supply a steel strip to fit in the grooves.  The strip will keep the face joint in much better alignment then without it.

Splines (factory grove in 2 abutting pieces plus metal insert) Retail for about $30 per 4 ft of abutting area.

The Panels themselves are glued to the existing wall with a good grade construction adhesive.   The walls need not be perfect since the panel joint is aligned by the splines to keep the surface flush.

Panels weight approx 3 lbs per sq ft so a 4' x 8' backed panel is 96 lbs.
thickness if shin plus wood is approx 17/32"

Trim painted to match P3 panels

used to fill in near walls
